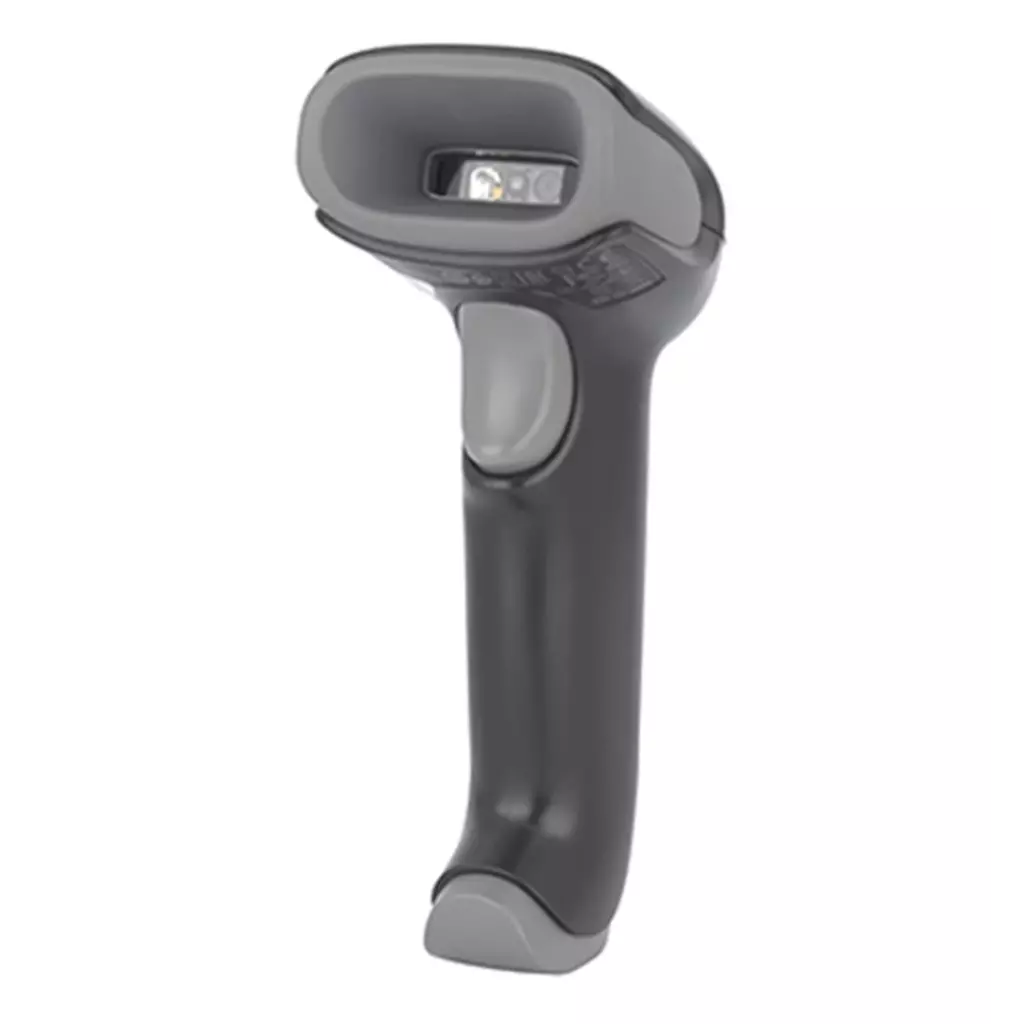

Honeywell Voyager Extreme Performance 1472g, BT, 2D, BT, kit (USB), black

Bluetooth scanner, 2D, imager, Bluetooth, IP40, incl.: cable (USB, straight, 3 m, black), charging/transmitter cradle, colour: black

The Honeywell Voyager Extreme Performance (XP) 1472g is a reliable 2D scanner for retail. It is designed to read difficult-to-capture 1D and 2D barcodes, as well as DotCodes and digital vouchers from a smartphone or tablet – even if the barcodes are damaged or difficult to read. Together with the increased flexibility, due to its wireless design, it simplifies work and helps save time.

The multi-interfaces of the Voyager XP 1472g always ensure good performance and include USB, keyboard wedge (KBW), RS232 and RS485 with support for IBM 46XX. It is also robust: it withstands multiple falls from heights of up to 1.8 meters and is protected against the penetration of foreign bodies up to 1 mm and diagonally falling dripping water according to IP42 certification. Plus, the Voyager XP 1472g is fully backwards compatible with existing accessories. There are no additional costs for optional accessories and the total cost of ownership is lower. WIRELESS Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2 30 m (98 ft) line of sight with Honeywell charger/communication base Power Options: Battery: 2400 mAh Li-ion minimum Number of Scans: Up to 50,000 scans per charge Expected Duration of Operation: 14 hours Expected Charge Time: 4.5 hours User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Charge Status Indicator

MECHANICAL/ELECTRICAL Dimensions (L x W x H): 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in) Charger/Communication Base: (CCB01- 010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in) Scanner Weight: 210 g (7.4 oz) Charger/Communication Base: 179 g (6.3 oz) Operating Power (Charging): Charger/ Communication Base: 179 g (6.3 oz) Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V) Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

ENVIRONMENTAL Operating Temperature: Scanner: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (23°F to 122°F) Charger/Communication Base: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F) Storage Temperature: Scanner: For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) For storage up to 1 year: -20°C to 20°C (-4°F to 68°F) Charger/Communication Base: -40°C to 70°C (-40°F to 158°F) Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air Humidity: 0% to 95% relative humidity, non-condensing Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete Environmental Sealing: IP42 Light Levels: 0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE Scan Pattern: Area Image (1040 x 720 pixel array) Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus Scan Angle: Horizontal: 39.2° nominal Vertical: 27.4° nominal Roll, Pitch, Skew: ±180°, ±65°, ±70° Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies Note: Decode capabilities dependent on configuration.
